Information injection-pump assembly
BOSCH
9 400 613 297
9400613297
ZEXEL
101609-3750
1016093750
KOMATSU
4063844
4063844
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

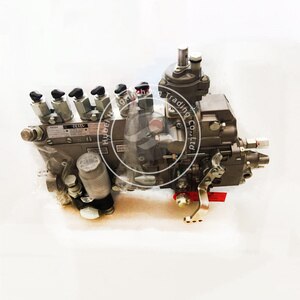

Fuel Injection Pump 4063844 For Cummins 6B5.9 Komatsu 6D102 PC200-7 Excavator
XIAOYAOSHIJIA Part Number:4063844 || Application:For Cummins 6B5.9 Komatsu 6D102 PC200-7 Excavator
XIAOYAOSHIJIA Part Number:4063844 || Application:For Cummins 6B5.9 Komatsu 6D102 PC200-7 Excavator
4063844 6738-71-1530 101062-9270 Original PC220-7 Excavator Engine 6BT QSB5.9 Fuel Injection Pump
PSIGHT Smooth acceleration and no stalling. || Improve engine performance, smooth oil supply and durability. || Start without stalling, silent and not hot, eliminate oil smell in the car. || Accurate oil gauge, eliminates oil smell, stable performance and high reliability. || Smooth running, high temperature resistance, anti-aging, original vehicle specifications.
PSIGHT Smooth acceleration and no stalling. || Improve engine performance, smooth oil supply and durability. || Start without stalling, silent and not hot, eliminate oil smell in the car. || Accurate oil gauge, eliminates oil smell, stable performance and high reliability. || Smooth running, high temperature resistance, anti-aging, original vehicle specifications.
$1,860.00
23 Aug 2022
CN: HNHYJK
Nayuank Fuel Injection Pump 4063844 Compatible with Cummins 6B5.9 Komatsu 6D102 PC200-7 Excavator
Nayuank Item Type:Fuel Injection Pump Assembly || 6B5.9 6D102 || Compatible with Cummins 6B5.9 6D102 Diesel Engine || Compatible with Komatsu 6D102 Diesel Engine PC200-7 Excavator || Please tell us of your engine model or a view of engine nameplate when order this item to lower the error rate.Thanks.
Nayuank Item Type:Fuel Injection Pump Assembly || 6B5.9 6D102 || Compatible with Cummins 6B5.9 6D102 Diesel Engine || Compatible with Komatsu 6D102 Diesel Engine PC200-7 Excavator || Please tell us of your engine model or a view of engine nameplate when order this item to lower the error rate.Thanks.
You can express buy:
Service parts 101609-3750 INJECTION-PUMP ASSEMBLY:
1.
_
5.
AUTOM. ADVANCE MECHANIS
6.
COUPLING PLATE
7.
COUPLING PLATE
8.
_
9.
_
11.
Nozzle and Holder
12.
Open Pre:MPa(Kqf/cm2)
22{224}
15.
NOZZLE SET
Include in #1:
101609-3750
as INJECTION-PUMP ASSEMBLY
Include in #2:
104268-1100
as _
Cross reference number
BOSCH
9 400 613 297
9400613297
ZEXEL
101609-3750
1016093750
KOMATSU
4063844
4063844
| Zexel num | Bosch num | Firm num | Firm | Name |
| 101609-3750 | 9 400 613 297 | 4063844 | KOMATSU |
INJECTION-PUMP ASSEMBLY
6BTAA K 14BE INJECTION PUMP ASSY PE6A PE |
| 101609-3750 | 9 400 613 297 | 6738711520 | KOMATSU |
INJECTION-PUMP ASSEMBLY
6BTAA K 14BE INJECTION PUMP ASSY PE6A PE |
Calibration Data:
Adjustment conditions Test oil ISO4113 or {SAEJ967d}
1404 Test oil
Test oil temperature
degC
40
40
45
Nozzle and nozzle holder
105780-8140
Bosch type code
EF8511/9A
Nozzle
105780-0000
Bosch type code
DN12SD12T
Nozzle holder
105780-2080
Bosch type code
EF8511/9
Opening pressure
MPa
17.2
Opening pressure
kgf/cm2
175
Injection pipe
mm
6-2-600
Outer diameter - inner diameter - length (mm)
Outer diameter - inner diameter - length (mm)
Overflow valve
131424-3420
Overflow valve opening pressure
kPa
255
221
289
Overflow valve opening pressure
kgf/cm2
2.6
2.25
2.95
Tester oil delivery pressure
kPa
255
255
255
Tester oil delivery pressure
kgf/cm2
2.6
2.6
2.6
Direction of rotation (viewed from drive side)
R
Right
Right
Injection timing adjustment Direction of rotation (viewed from drive side) R
Right
Injection order
1-5-3-6-
2-4
Pre-stroke
mm
2.7
2.65
2.75
Rack position
R=A
After adjusting injection quantity.
After adjusting injection quantity.
Beginning of injection position
NO.1
Drive side
Drive side
Difference between angles 1
deg.
60
59.5
60.5
Cal 1-5
Cal 1-5
Difference between angles 2
deg.
120
119.5
120.5
Cal 1-3
Cal 1-3
Difference between angles 3
deg.
180
179.5
180.5
Cal 1-6
Cal 1-6
Difference between angles 4
deg.
240
239.5
240.5
Cyl.1-2
Cyl.1-2
Difference between angles 5
deg.
300
299.5
300.5
Cal 1-4
Cal 1-4
Injection quantity adjustment Adjusting point A
Rack position
10.1
Pump speed
r/min
975
975
975
Average injection quantity
mm3/st.
110
109
111
Max. variation between cylinders
%
0
-2.5
2.5
Basic
*
Fixing the lever
*
Boost pressure
kPa
38.7
38.7
Boost pressure
mmHg
290
290
Injection quantity adjustment_02 Adjusting point -
Rack position
6.7+-0.5
Pump speed
r/min
525
525
525
Average injection quantity
mm3/st.
9.5
8.5
10.5
Max. variation between cylinders
%
0
-15
15
Fixing the rack
*
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.
Adjust only variation between cylinders; adjust governor according to governor specifications.
Injection quantity adjustment_03 Adjusting point D
Rack position
10.3++
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
90
85
95
Fixing the lever
*
Boost pressure
kPa
38.7
38.7
Boost pressure
mmHg
290
290
Rack limit
*
Injection quantity adjustment_04 Adjusting point E
Rack position
9.4
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
50
45
55
Fixing the lever
*
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Boost compensator adjustment Pump speed r/min 850 850 850
Rack position
9.4
Boost pressure
kPa
10
8.7
11.3
Boost pressure
mmHg
75
65
85
Boost compensator adjustment_02 Pump speed r/min 850 850 850
Rack position
(10.1)
Boost pressure
kPa
25.3
25.3
25.3
Boost pressure
mmHg
190
190
190
Test data Ex:
Governor adjustment
N:Pump speed
R:Rack position (mm)
(1)Target notch: K
(2)Tolerance for racks not indicated: +-0.05mm.
(3)It is not necessary to supply hydraulic pressure because the specification is for the hydraulic ACT normally ON.
(4)RACK LIMIT
(5)Set idle sub-spring
(6)Boost compensator stroke: BCL
----------
K=12 BCL=(0.7)mm
----------
Speed control lever angle
F:Full speed
I:Idle
(1)Use hole at R = aa (middle hole)
(2)Stopper bolt setting
----------
aa=77mm
----------
a=7deg+-5deg b=26deg+-5deg
Stop lever angle
N:Pump normal
S:Stop the pump.
(1)No return spring
----------
----------
a=0deg+-5deg b=53deg+-5deg
0000001501
I/P WITH LOAD PLUNGER ADJ
Adjusting procedure for load plunger equipped pump with RSV (cam lock) governor (see service information S.I. 434 for details).
At cam lift h+-0.01, set the camshaft c deg from the * mark in accordance with the timing adjustment procedure.
2. Align the flyweight's timing tooth position and the lock pin groove and then fully tighten the flyweight to the camshaft. Then, remove the lock pin.
3. Adjust the maximum variation between cylinders and injection quantity.
4. Adjust using the pre-stroke adjusting shim so that the pre-stroke value is the value for 4/4 load (standard point A).
5. After adjusting the pre-stroke, reconfirm that the injection quantity and the maximum variation between cylinders are as specified.
6. At delivery, again fix the flyweight using the lock pin.
----------
h=2.7+-0.01mm c=5deg30min+-30min
----------
0000001601
TAMPER PROOF
Tamperproofing-equipped boost compensator cover installation procedure
(1)After adjusting the governor and the boost compensator, tighten to the specified torque to break off the bolt heads.
(Tightening torque T = T1 maximum)
(2)After adjusting the governor and the boost compensator, tighten to the specified torque to break off the bolt heads.
(Tightening torque T = T2)
(3)After adjusting the governor and the boost compensator, tighten to the specified torque to break off the bolt heads.
(Tightening torque T = T3)
----------
T1=7.16~9.12N-m(0.73~0.93kgf-m) T2=2.9~4.4N-m(0.3~0.45kgf-m) T3=2.9~4.4N-m(0.3~0.45kgf-m)
----------
Timing setting
(1)Pump vertical direction
(2)Key groove position for No. 1 cylinder's cam lift h = cc (at BTDC aa).
(3)Key groove position for No. 1 cylinder's beginning of injection (at point A after injection quantity adjustment).
(4)Position of the key groove of the No. 1 cylinder at B.T.D.C. bb (fix the governor flyweight at this position for delivery).
(5)B.T.D.C.: aa
----------
aa=11deg bb=0deg cc=2.7+-0.01mm
----------
a=55deg48min+-3deg b=55deg48min+-3deg13min48sec c=5deg30min+-30min
