105866-7211 ZEXEL F 019 Z2E 505 BOSCH HYDRAULIC GOVERNOR f019z2e505 1058667211 74044141b


105866-7211 HYDRAULIC GOVERNOR
Rating:
16
Buy HYDRAULIC GOVERNOR 105866-7211 zexel genuine, new aftermarket engine parts with delivery

Information hydraulic governor

BOSCH F 019 Z2E 505 f019z2e505
ZEXEL 105866-7211 1058667211
NIIGATA-URAWA 74044141B 74044141b

Components :

0. INJECTION-PUMP ASSEMBLY 105866-7211
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

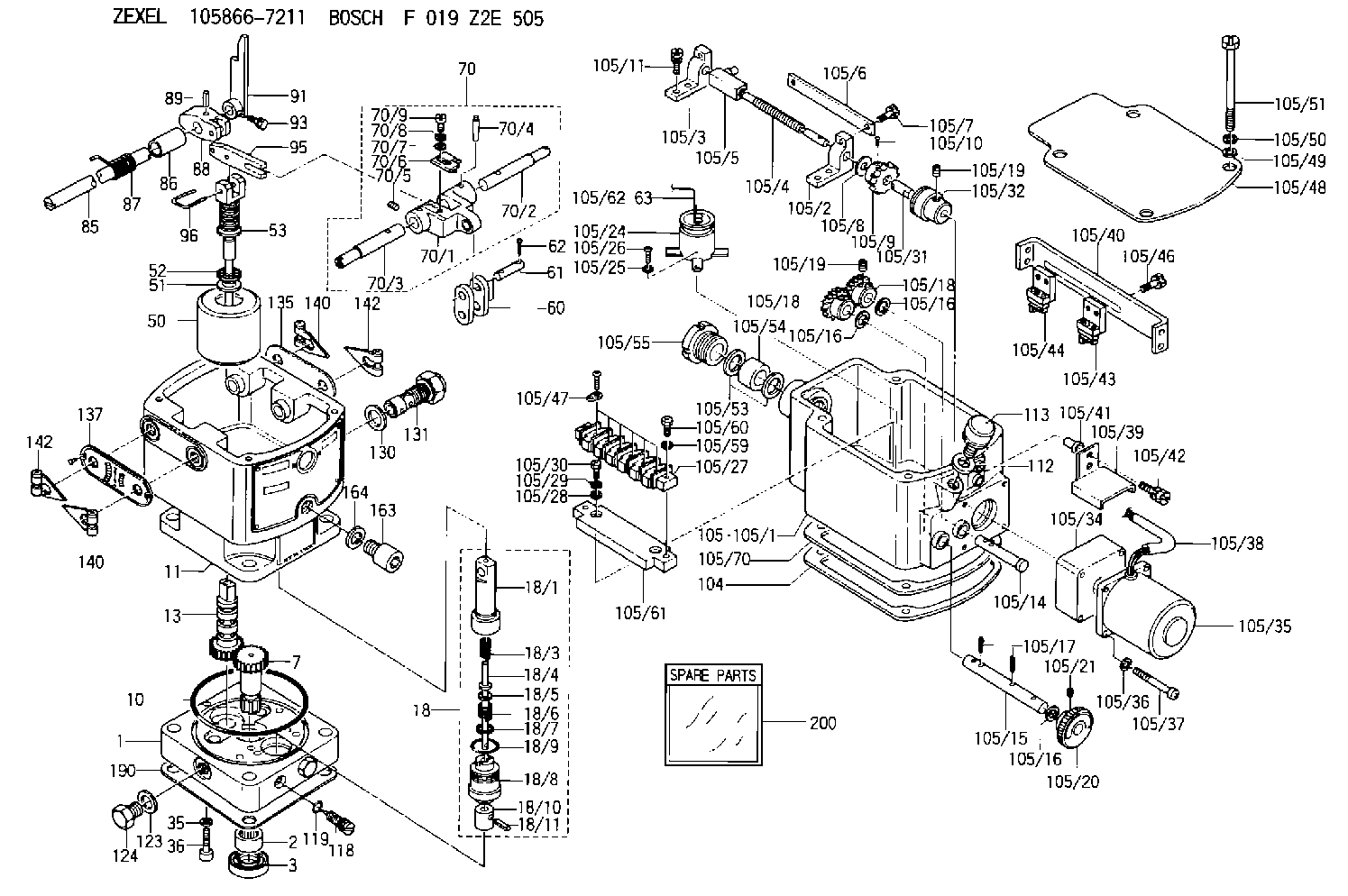

Scheme ###:

BASE
1. [1] 158502-0420 BASE
2. [1] 029811-8000 BEARING PLATE
3. [1] 158528-0900 PACKING RING
7. [1] 158131-0100 GEAR SHAFT
10. [1] 158028-0000 O-RING
11. [1] 158507-1920 DIAPHRAGM HOUSING
13. [1] 158621-0500 SLEEVE
18. [1] 158699-0921 COMPENSATOR ASSY
18/1. [1] 158610-1101 POWER PISTON
18/3. [1] 158654-0800 COILED SPRING
18/4. [1] 158614-0700 STOP PIN
18/5. [1] 158612-0500 PLAIN WASHER
18/6. [1] 158654-0900 COILED SPRING
18/7. [1] 016110-1220 LOCKING WASHER
18/8. [1] 158612-0401 BUSHING
18/9. [2] 016550-2310 O-RING
18/10. [1] 158615-0800 PUMP PLUNGER
18/11. [1] 025620-1410 SPRING PIN
35. [3] 029330-6070 GASKET
36. [3] 010206-2520 HEX-SOCKET-HEAD CAP SCREW
50. [1] 158600-1020 FLYWEIGHT ASSEMBLY
51. [1] 158106-0100 PLAIN WASHER
52. [1] 029811-0000 BEARING PLATE
53. [1] 158620-1420 PILOT VALVE
60. [2] 158220-0000 GUIDE LEVER
61. [2] 158736-0200 BEARING PIN
62. [4] 025520-1510 SPLIT PIN
70. [1] 158730-0220 TERMINAL ARM
70/1. [1] 158230-0020 TERMINAL ARM
70/2. [1] 158315-0200 TERMINAL SHAFT
70/3. [1] 158315-0200 TERMINAL SHAFT
70/4. [2] 158736-0100 TAPER PIN
70/5. [2] 011006-0620 SET OF NUTS
70/6. [1] 158214-0020 SPEED DROOP ADJUSTER
70/7. [1] 014020-5120 PLAIN WASHER
70/8. [1] 029320-5030 TAB WASHER
70/9. [1] 010535-1220 FLAT-HEAD SCREW
85. [1] 158814-1200 SPEED CONTROL SHAFT
86. [1] 158823-0300 BUSHING
87. [1] 158322-0200 COILED SPRING
88. [1] 158710-0400 STRAP
89. [1] 029404-5010 BEARING PIN
91. [1] 158712-2000 CONTROL LEVER
93. [1] 029010-5210 BLEEDER SCREW
95. [1] 158211-0100 STRAP
96. [2] 158653-0100 WIRE
104. [1] 158017-0900 GASKET
105. [1] 158964-5421 GOVERNOR MOTOR ASSY
105/1. [1] 158962-5210 CASE
105/2. [1] 158903-0200 HOLDER
105/3. [1] 158903-0300 HOLDER
105/4. [1] 158903-0400 FLAT-HEAD SCREW
105/5. [1] 158903-1720 ADJUSTER
105/6. [2] 158903-0800 PLATE
105/7. [4] 029010-6330 BLEEDER SCREW M6P1.0L13
105/8. [1] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/9. [1] 158904-0500 TOOTHED GEAR
105/10. [1] 158590-0000 BEARING PIN
105/11. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
105/14. [1] 158904-0300 LEVER SHAFT
105/15. [1] 158904-0200 LEVER SHAFT
105/16. [3] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/16. [3] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/16. [3] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/17. [3] 015320-1540 SPLIT PIN
105/18. [2] 158904-0400 TOOTHED GEAR
105/18. [2] 158904-0400 TOOTHED GEAR
105/19. [3] 011005-0820 SET OF NUTS
105/19. [3] 011005-0820 SET OF NUTS
105/20. [1] 158904-1920 ROUND NUT
105/21. [1] 158916-0000 SET OF NUTS
105/24. [1] 158908-3900 CONDENSER
105/25. [2] 014110-3440 LOCKING WASHER
105/26. [2] 012153-0840 FLAT-HEAD SCREW M3P0.5L8
105/27. [1] 158906-1500 TERMINAL BOARD
105/28. [2] 014020-4140 PLAIN WASHER D8&4.5T0.5
105/29. [2] 014110-4440 LOCKING WASHER
105/30. [2] 012154-1040 FLAT-HEAD SCREW M4P0.7L10
105/31. [1] 158902-0300 JOINT CONNECTION
105/32. [1] 158902-0020 FRICTION COUPLING
105/34. [1] 158908-2800 GEAR HEAD
105/35. [1] 158908-4200 MOTOR
105/36. [4] 014020-4140 PLAIN WASHER D8&4.5T0.5
105/37. [4] 158901-8100 FLAT-HEAD SCREW
105/38. [1] 158901-9700 HOSE
105/39. [1] 158901-8300 COVER
105/40. [1] 158900-0300 BRACKET
105/41. [3] 158900-0200 BUSHING
105/42. [3] 029010-6350 BLEEDER SCREW M6P1.0L22
105/43. [1] 158907-3820 LIMIT SWITCH
105/44. [1] 158907-3720 LIMIT SWITCH
105/46. [2] 020144-1240 BLEEDER SCREW
105/47. [5] 158906-0801 TERMINAL
105/48. [1] 158562-2600 COVER
105/49. [4] 014020-6140 PLAIN WASHER
105/50. [4] 014110-6440 LOCKING WASHER
105/51. [4] 158909-0100 BLEEDER SCREW
105/53. [2] 158901-2700 PLAIN WASHER
105/54. [1] 158901-2800 PACKING
105/55. [1] 158901-2600 GROUND
105/59. [2] 014110-4440 LOCKING WASHER
105/60. [2] 012154-1640 FLAT-HEAD SCREW
105/61. [1] 158906-1600 SPACER BUSHING
105/62. [1] 158901-2000 WIRE
105/63. [1] 158901-1800 WIRE
105/70. [1] 158563-1300 COVER
112. [1] 026512-1640 GASKET D15.9&12.2T1
113. [1] 155406-0220 AIR FILTER
118. [1] 158527-0200 NEEDLE VALVE
119. [1] 016500-0710 O-RING
123. [2] 026512-1640 GASKET D15.9&12.2T1
124. [2] 029111-2070 CAPSULE M12P1.5L10
130. [1] 029331-8040 GASKET
131. [1] 158660-0320 CONTROL VALVE
135. [1] 158515-0900 INDICATOR PLATE
137. [1] 158515-1000 INDICATOR PLATE
140. [2] 158820-0620 POINTER
140. [2] 158820-0620 POINTER
142. [2] 158820-0620 POINTER
142. [2] 158820-0620 POINTER
163. [1] 010210-1420 HEX-SOCKET-HEAD CAP SCREW
164. [1] 026510-1340 GASKET D13.4&10.2T1
190. [1] 158017-1000 GASKET
200. [1] 158599-7220 SPARE PART

Include in #2:

105866-7211 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num Bosch num Firm num Firm Name
105866-7211
105866-7212  		F 019 Z2E 505  74044141B  NIIGATA-URAWA HYDRAULIC GOVERNOR
* K 35CA Hydraulic RHD10 Others
105866-7211
105866-7212  		F 019 Z2E 505  74044141B  NIIGATA-TEKKOU HYDRAULIC GOVERNOR
* K 35CA Hydraulic RHD10 Others




Have questions with 105866-7211?





Group cross 105866-7211 ZEXEL

105866-7200
105866-7201  F 019 Z2E 503    HYDRAULIC GOVERNOR

Niigata-Urawa

105866-7201
105866-7202  F 019 Z2E 504  74044136C  HYDRAULIC GOVERNOR
105866-7202  F 019 Z2F 338
RHD10-MCL    HYDRAULIC GOVERNOR

Niigata-Urawa

105866-7210
105866-7211    74044141A  HYDRAULIC GOVERNOR
105866-7211
105866-7212  F 019 Z2E 505  74044141B  HYDRAULIC GOVERNOR

Niigata-Tekkou

105866-7211
105866-7212  F 019 Z2E 505  74044141B  HYDRAULIC GOVERNOR
105866-7212  F 01G 29N 0GK
RHD10-MCL    HYDRAULIC GOVERNOR
105866-7220      HYDRAULIC GOVERNOR

Niigata-Urawa

105866-7221
105866-7222  F 019 Z2E 506  74044131F  HYDRAULIC GOVERNOR
105866-7222  F 01G 29N 021
RHD10-MCL    HYDRAULIC GOVERNOR
105866-7230      HYDRAULIC GOVERNOR

Niigata-Urawa

105866-7231
105866-7232  F 019 Z2E 507  74044138C  HYDRAULIC GOVERNOR
105866-7232  F 01G 29N 022
RHD10-MCL    HYDRAULIC GOVERNOR

Niigata-Urawa

105866-7240
105866-7241  F 019 Z2E 508  74044107F  HYDRAULIC GOVERNOR
105866-7241      HYDRAULIC GOVERNOR
105866-7250
105866-7251  F 019 Z2E 509    HYDRAULIC GOVERNOR

Niigata-Tekkou

105866-7251  F 019 Z3E 576
RHD10-MCL  74044142B  HYDRAULIC GOVERNOR
105866-7260  F 019 Z2E 510
RHD10-MCL    HYDRAULIC GOVERNOR

Yanmar

105866-7270
105866-7271  F 019 Z2E 511  41100005380  HYDRAULIC GOVERNOR
105866-7271  F 019 Z5E 251
RHD10-MCL  41100005381  HYDRAULIC GOVERNOR
105866-7280
105866-7281  F 019 Z2E 512  41100005390  HYDRAULIC GOVERNOR
105866-7281  F 019 Z5E 252
RHD10-MCL  41100005391  HYDRAULIC GOVERNOR
105866-7290
105866-7291  F 019 Z2E 513  41100005400  HYDRAULIC GOVERNOR
105866-7291  F 019 Z5E 253
RHD10-MCL  41100005401  HYDRAULIC GOVERNOR
